To understand how a thorium reactor works, you first need to know that thorium itself is not directly used as fuel. Instead, reactors use a process called nuclear fission to turn thorium-232 into a usable fuel called uranium-233. This transformation happens inside the reactor with the help of neutrons, starting a controlled chain reaction that releases energy. Here are five steps that can help you understand the process of how a thorium reactor works:To understand how a thorium reactor works, you first need to know that thorium itself is not directly used as fuel. Instead, reactors use a process called nuclear fission to turn thorium-232 into a usable fuel called uranium-233. This transformation happens inside the reactor with the help of neutrons, starting a controlled chain reaction that releases energy. Here are five steps that can help you understand the process of how a thorium reactor works:

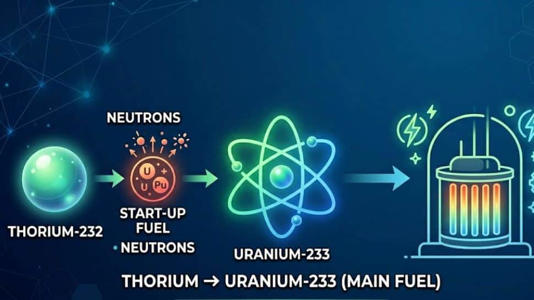

Step 1: Thorium is loaded into the reactor core along with a small amount of uranium or plutonium to start the process. This initial fuel releases neutrons that help convert thorium into uranium-233, which later becomes the main fuel.

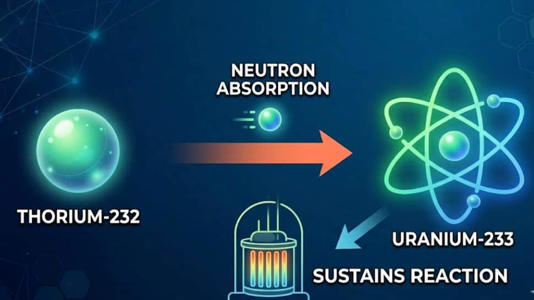

Step 2: Thorium-232 absorbs a neutron and slowly transforms into uranium-233 through radioactive decay. This newly formed uranium-233 can sustain the nuclear reaction efficiently.

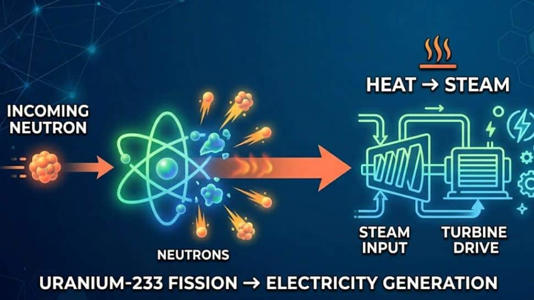

Step 3: Uranium-233 atoms undergo fission when struck by neutrons, releasing a large amount of heat. This heat is used to produce steam, which drives turbines to generate electricity.

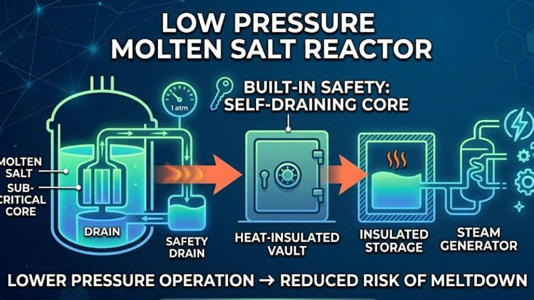

Step 4: Heat is safely managed in the reactor. Many designs, like molten salt reactors, operate at lower pressure and include built-in safety features, reducing the risk of meltdown.

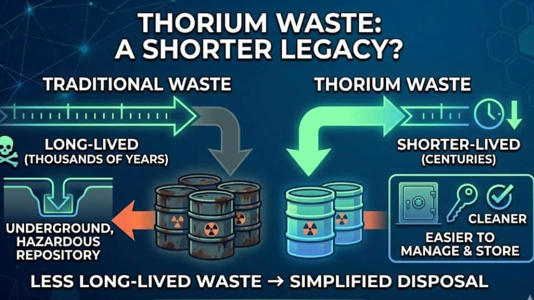

Step 5: Thorium reactors produce less long-lived radioactive waste. Although still hazardous, the waste remains radioactive for a shorter period, making it easier to manage and store.
Countries like India and China are actively researching thorium-based technologies due to their large thorium reserves and growing energy needs. Experts believe this technology could play a key role in cleaner and more sustainable power generation in the future. A thorium reactor, specifically a Liquid Fluoride Thorium Reactor (LFTR), operates differently than the conventional uranium reactors used today. It uses a liquid fuel cycle rather than solid fuel rods.
Here is the process explained in five steps:
1. The Blanket Assembly
The reactor core is surrounded by a "blanket" containing Thorium-232. While thorium itself is not fissile (meaning it cannot split to produce energy on its own), it is fertile. In this stage, the thorium blanket absorbs neutrons from a nearby fission reaction, initiating a nuclear transformation.
2. Transmutation to Uranium-233
When a Thorium-232 atom absorbs a neutron, it becomes Thorium-233, which quickly decays into Protactinium-233 and finally into Uranium-233. This isotope, $U^{233}$, is a highly efficient fissile fuel. This process of "breeding" new fuel from thorium is what makes these reactors potentially sustainable for thousands of years.
3. Fission in the Liquid Core
The newly created Uranium-233 is dissolved into a molten fluoride salt mixture. As $U^{233}$ atoms undergo fission (splitting), they release a massive amount of heat and more neutrons. Some of these neutrons head back to the blanket to turn more thorium into uranium, keeping the cycle going, while the rest maintain the chain reaction.
4. Heat Exchange and Power Generation
The molten salt, now extremely hot (roughly 700°C), is pumped through a heat exchanger. Because the fuel is a liquid, it can transfer heat much more efficiently than solid rods. This heat is used to boil water into steam or, more efficiently, to heat a gas like helium or carbon dioxide to spin a turbine and generate electricity.
5. Passive Safety and Waste Removal
Thorium reactors operate at atmospheric pressure, eliminating the risk of explosive depressurization. If the reactor overheats, a freeze plug at the bottom of the tank melts, and the liquid fuel automatically drains into emergency cooling tanks where the reaction naturally stops. Additionally, chemical processing loops can "scrub" the liquid fuel while the reactor is running, removing fission byproducts to keep the reaction clean and efficient.
Note: While the theory has existed since the 1960s, most thorium reactors currently remain in the experimental or prototype phase as engineers work to perfect the materials needed to handle the corrosive nature of molten salts over long periods.
Step 1: Thorium is loaded into the reactor core along with a small amount of uranium or plutonium to start the process. This initial fuel releases neutrons that help convert thorium into uranium-233, which later becomes the main fuel.
Step 2: Thorium-232 absorbs a neutron and slowly transforms into uranium-233 through radioactive decay. This newly formed uranium-233 can sustain the nuclear reaction efficiently.
